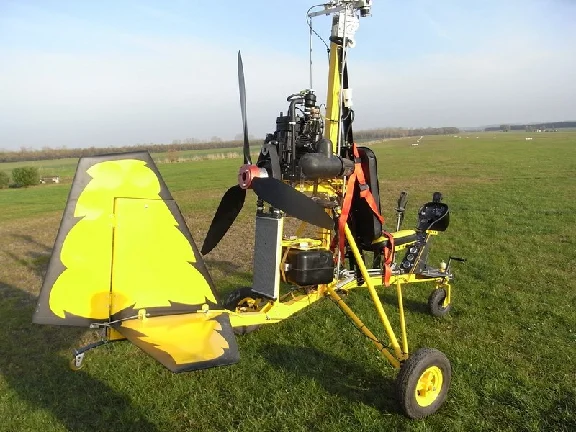

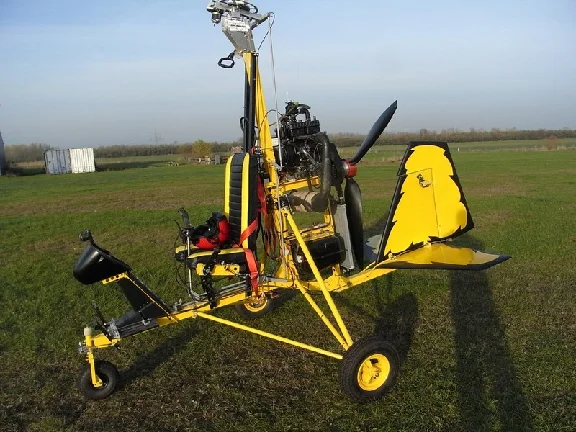

Single autogyro Hornet was developed in 1997. This project includes simple technical solutions, makes it possible to obtain an aircraft with

Remarkable flight characteristics and not difficult in construction.
The drawings are carefully prepared, understandable, and easy to read.
This is achieved thanks to three-dimensional drawings of units and assemblies, all sizes and materials necessary for the construction of this project are indicated.
The Hornet autogyro is made from a large number of small parts, most of these parts are shown in full size, on a separate sheet, this makes the kit

Drawings unique. The technical documentation consists of 170 pages of A4 format. For the construction of autogyro, you can use engines from 45 hp, from a motorcycle,

Boat motor, snowmobile. Frame made of duralumin pipes. If the engine fails, the landing is performed in the rotor self-rotation mode.

================================
The kit includes:

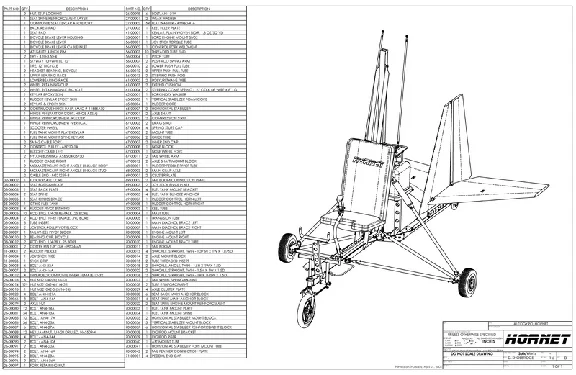

Drawings of 138 sheets.
Drawings in English.
Product volume 5,9 Mb.
PDF format
================================

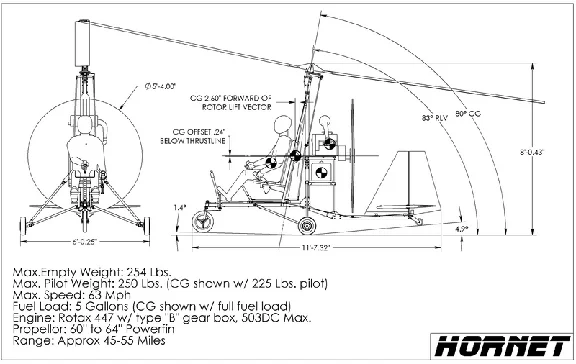

Flight performance "Hornet"

Engine ................................ Rotex 447,

Diameter of the rotor ..................... 7.32m,

Propeller ................................ 0.152m,

Height .................................... 2.28m,

Width ..................................... 1.83m,

Take-off weight ........................... 280kg,

Empty weight .............................. 160kg,

Max. Speed ​​........................... 102 km / h,

Cruising speed ......................... 80km / h,

Tank capacity ......................... 20 liters,

Distance range ............................. 90km.
